1903815-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1903815-1
Datasheet:
Description:

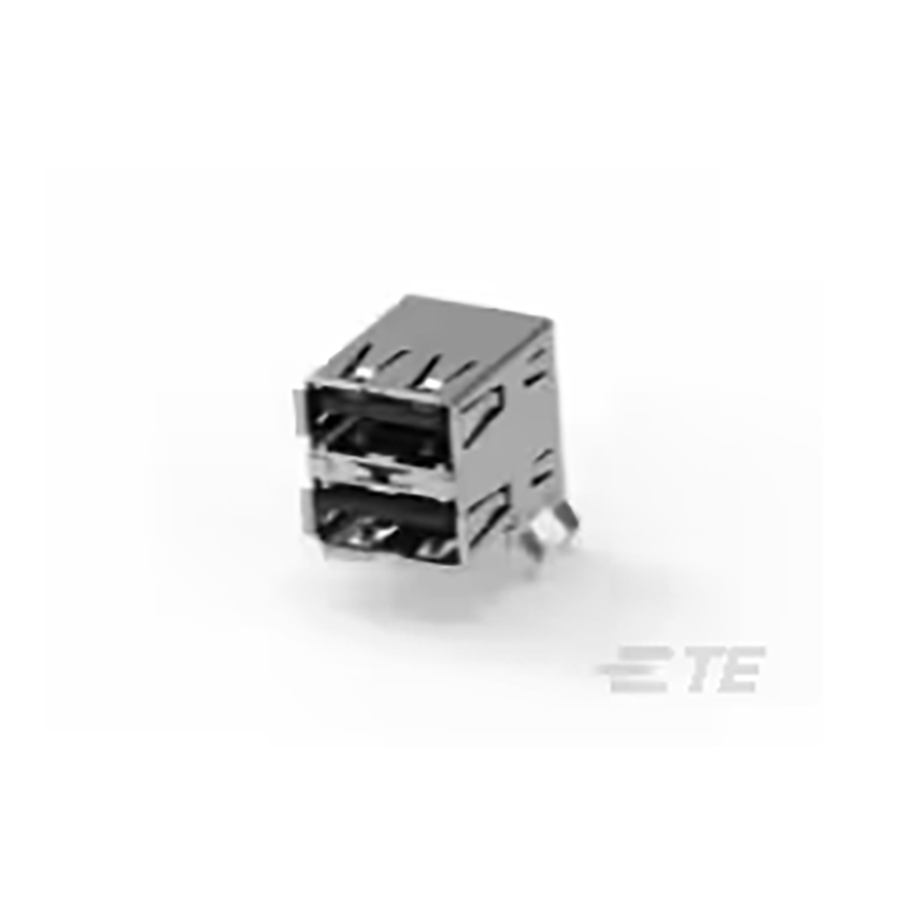

USB Connectors Through Hole Type A Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 14.7 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | IP20 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Type | Type A |
| Number of Terminals | 8 |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 8 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Mode | Multimode |
| Max Voltage Rating (AC) | 30 V |
| Housing Color | Black |
| Plating | Nickel, Tin |
| PCB Thickness | 1.57 mm |
| Tail Length | 2.84 mm |
| Plating Thickness | 760 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mounting Angle | Right Angle |
Stock: 3054
Distributors
pcbx
pcbxUnit Price$1.82713
Ext.Price$1.82713
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.82713 | $1.82713 |
| 10 | $1.55219 | $15.52190 |
| 25 | $1.45447 | $36.36175 |
| 50 | $1.36279 | $68.13950 |
| 100 | $1.27689 | $127.68900 |
| 300 | $1.19641 | $358.92300 |
| 500 | $1.12100 | $560.50000 |
| 1000 | $1.05036 | $1050.36000 |
